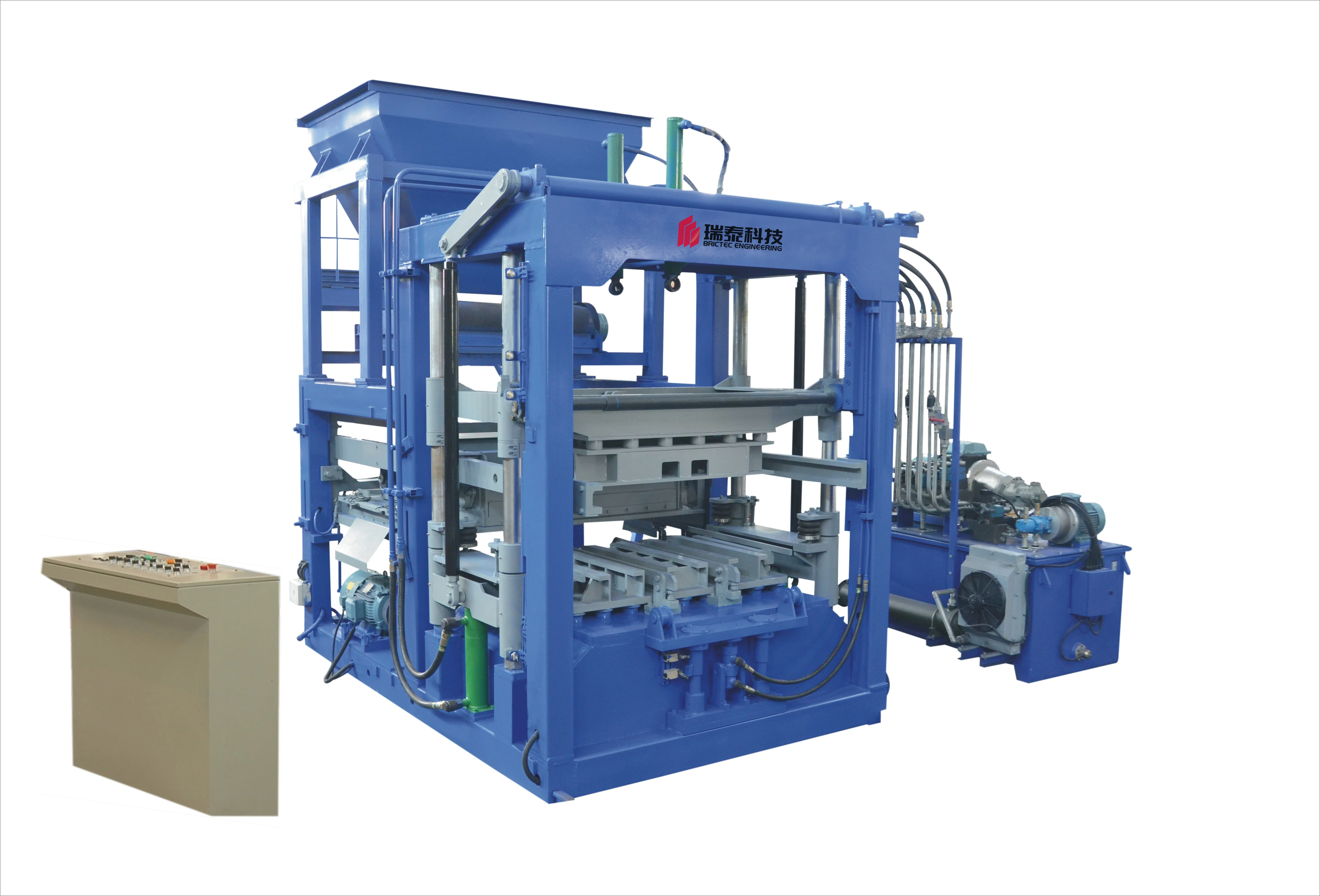

Weight 7000Kg fully automatic concrete block making machine with working video

  • 1 - 1 Sets
    $28,900.00
  • 2 - 4 Sets
    $26,900.00
  • >=5 Sets
    $24,900.00
Model Number:
QFT 6
Power:
34 kw
Samples:
$28,900.00 /Set | 1 Set (Min. Order) | Buy Samples
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
Brick Raw Material:
Cement
Production Capacity (Pieces/8 hours):
8640-11520 pcs/day

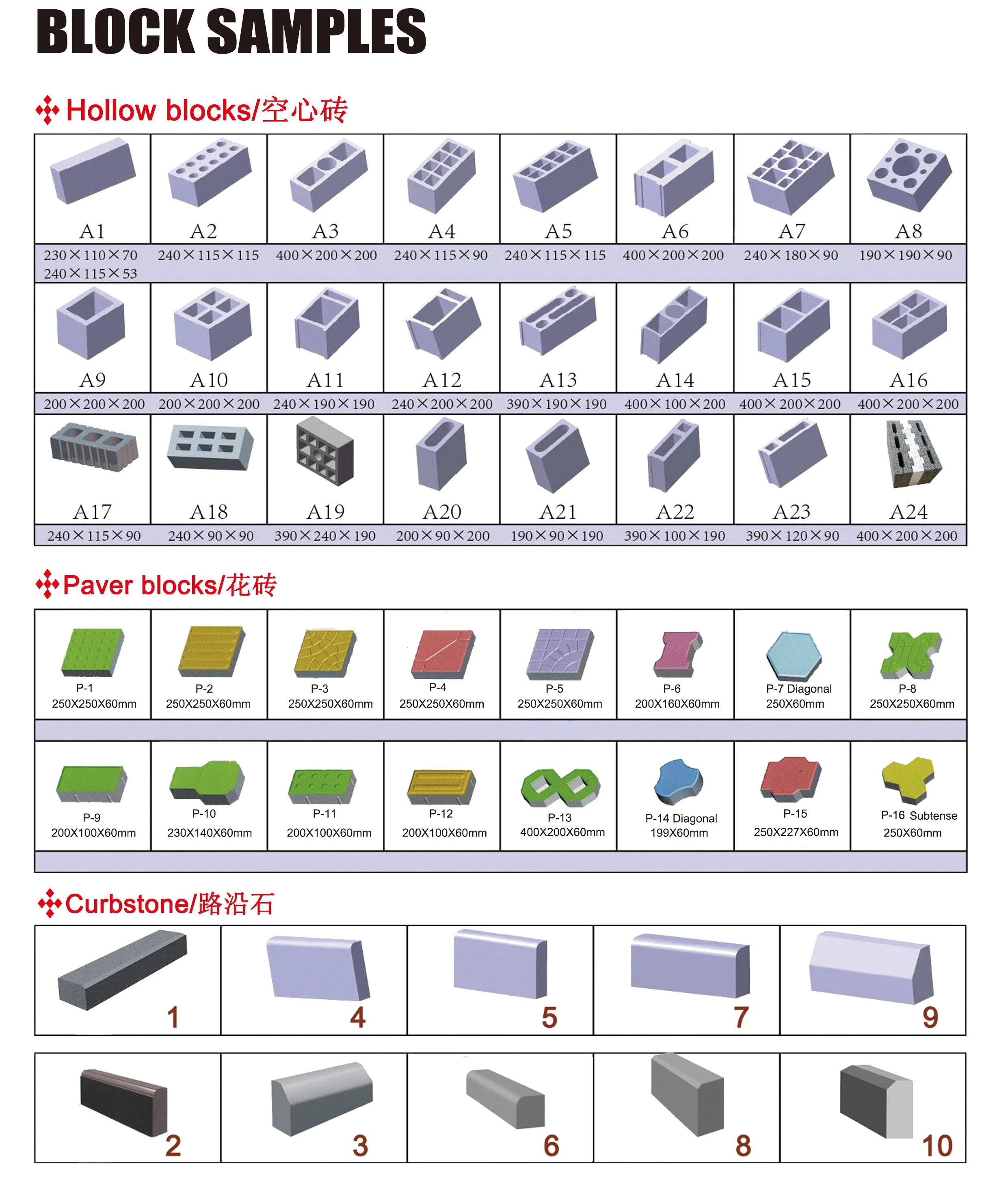

Brick size:
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
Applicable Industries:
Manufacturing Plant, Block factory
After Warranty Service:
Video technical support, Online support
Local Service Location:
Viet Nam, India, Bangladesh
Showroom Location:
Viet Nam, India, Bangladesh
Condition:
New
Processing:
Brick Molding Machine
Method:
Hydraulic pressure
Automatic:
yes
Place of Origin:
Shaanxi, China
Brand Name:
brictec
Voltage:
Local Voltage
Dimension(L*W*H):
3000x1850x3000mm
Certification:
ISO9001
Warranty:
1 Year, one year
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Key Selling Points:
Long Service Life
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
Hot Product 2019
Warranty of core components:
1.5 years
Core Components:
PLC, Motor
Rating pressure:
5-12Mpa
Cycle time:
15-25s
Pallet size:
880x830x25(mm)
Weight:
7000Kg
Supply Ability
Supply Ability:
5 Set/Sets per Month

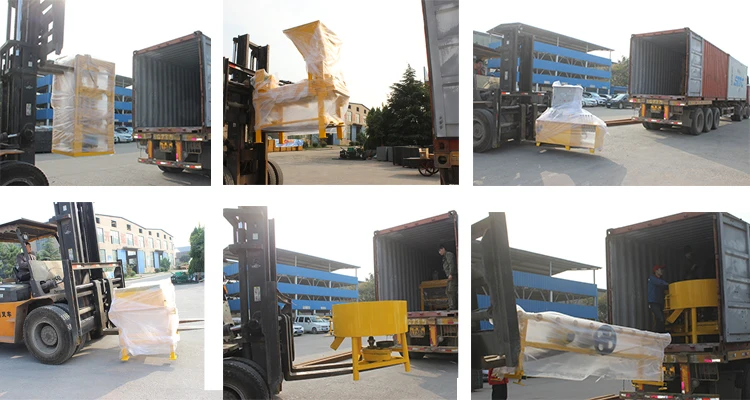

Packaging & Delivery
Packaging Details
CONTAINER.
Port
lianyungang
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description

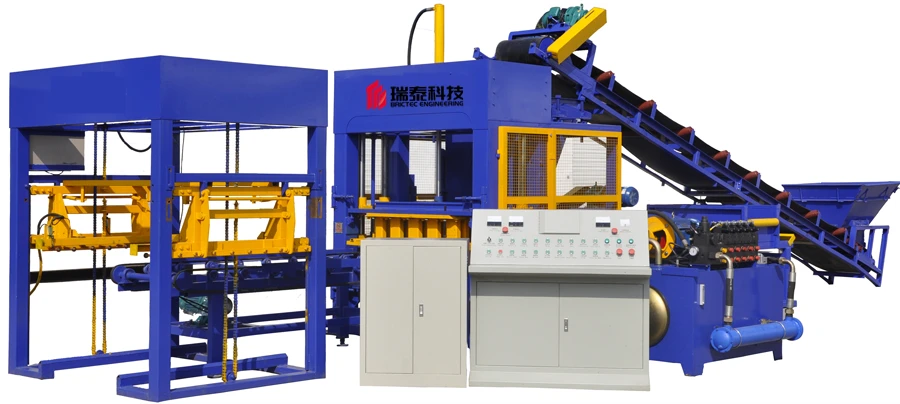

Products Description
Simple operation procedures, advanced molding methods, excellent power saving function and unique production process, raw materials can use a variety of local waste resources, and the products produced have the characteristics of high strength, light weight and low cost. Accurate weighing, after the mixed raw materials are conveyed to the mixer, the cement weighing scale and water weighing scale on the mixer realize the precise measurement of cement and water. At the same time when the measurement is completed, the mixer stirs various raw materials, and finally unloads the mixed raw materials into the storage hopper of the conveyor belt through the pneumatic system, waiting for the brick making mechanism bricks to be used. The whole process control saves labor, improves efficiency and improves the quality of finished products.
Product Features
System

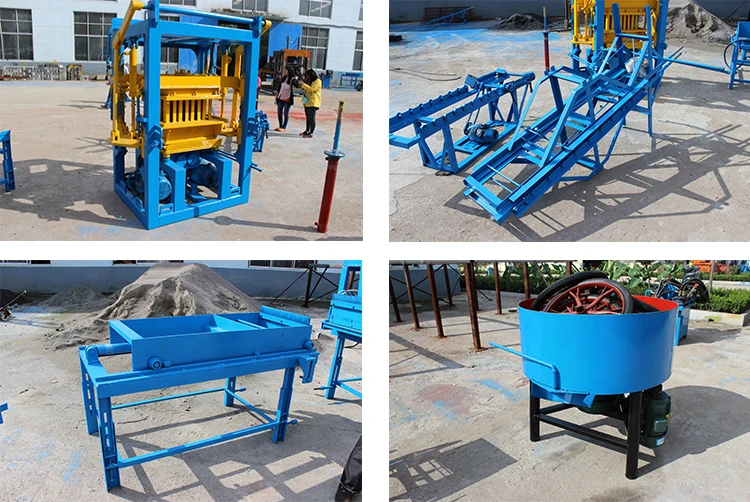

Main Components
Auto Batching & Mixing System
Batching Machine
Concrete Mixer
Belt Conveyor For Gigment
Spiral Conveyor
Pallet Feeder
Block Making Machine (With 1 set mould)

Transfer System
Wet Block Conveyor
Control System for Main Machine Forming System
Automatic Pallet Machine
Mould
Block Mould
Pallet
Wooden Pallet
Product Paramenters
Model
QFT6
Vibration Mode
Table Vibration
Height of Products (mm)
60-220
Mainframe Power (Kw)
42
Standard Block Dimension
390*190*190mm
Cycle Time
15-25 second
Forming Blocks (Pieces)
8 pieces / time
Weight (kg)
8000
Pallet Size (mm)
930x880*30mm
Vibration Frequency
50-65Hz
Vibration Table
4kw * 4
Vibration Force
80-100KN
Rating Pressure ( Mpa)
5-12 Mpa
Vibration Form
Adjustable Frequency, Adjustable Scope
Power Source Hydraulic or Other
Electric Drive
Main-pc/ Interface
Y
Production Line Voltage
380V/3Phase/50Hz
External Dimension
3300*1880*3063mm
Company Profile
Xi 'an Brictec Engineering Co., Ltd.(hereinafter referred to as Brictec) was founded in 2007, headquartered in Xi'an high-tech industrial development zone, is a professional high-tech enterprise specializing in the consultation and design of sintered wall material production line, raw material testing, general contract of engineering, R&D and manufacturing of thermotechnical equipment as natural gas burner,pulverized coal burner, modular tunnel kiln, etc.
Our Service
Customer Visit

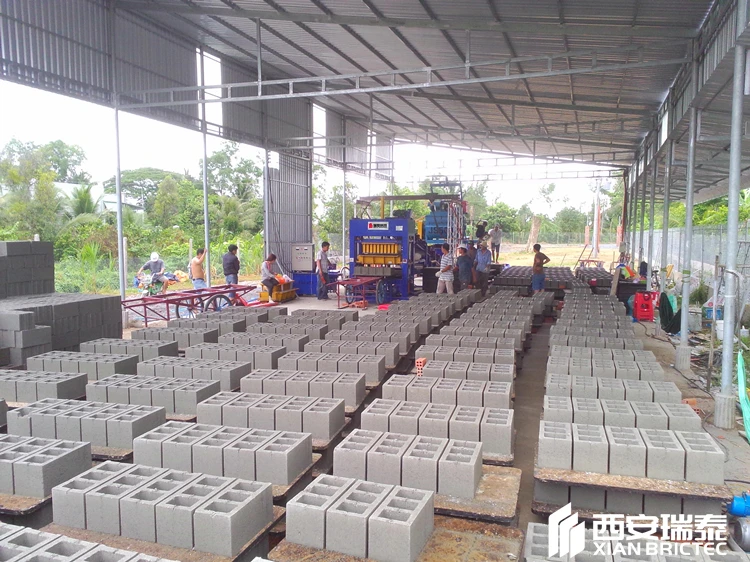

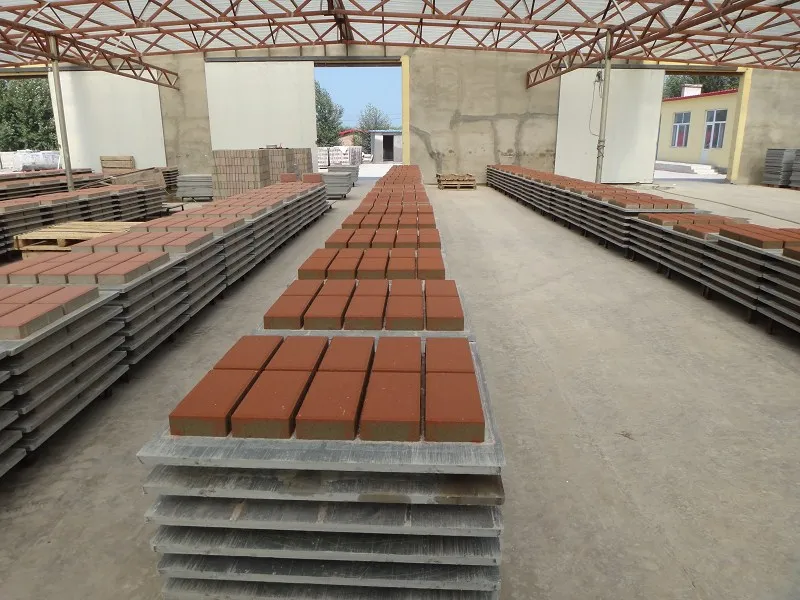

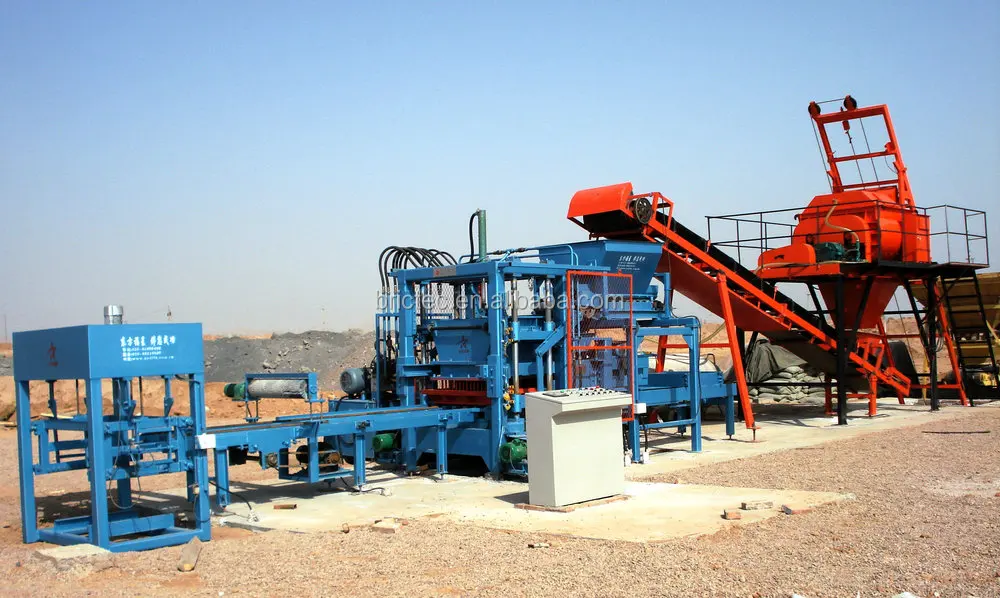

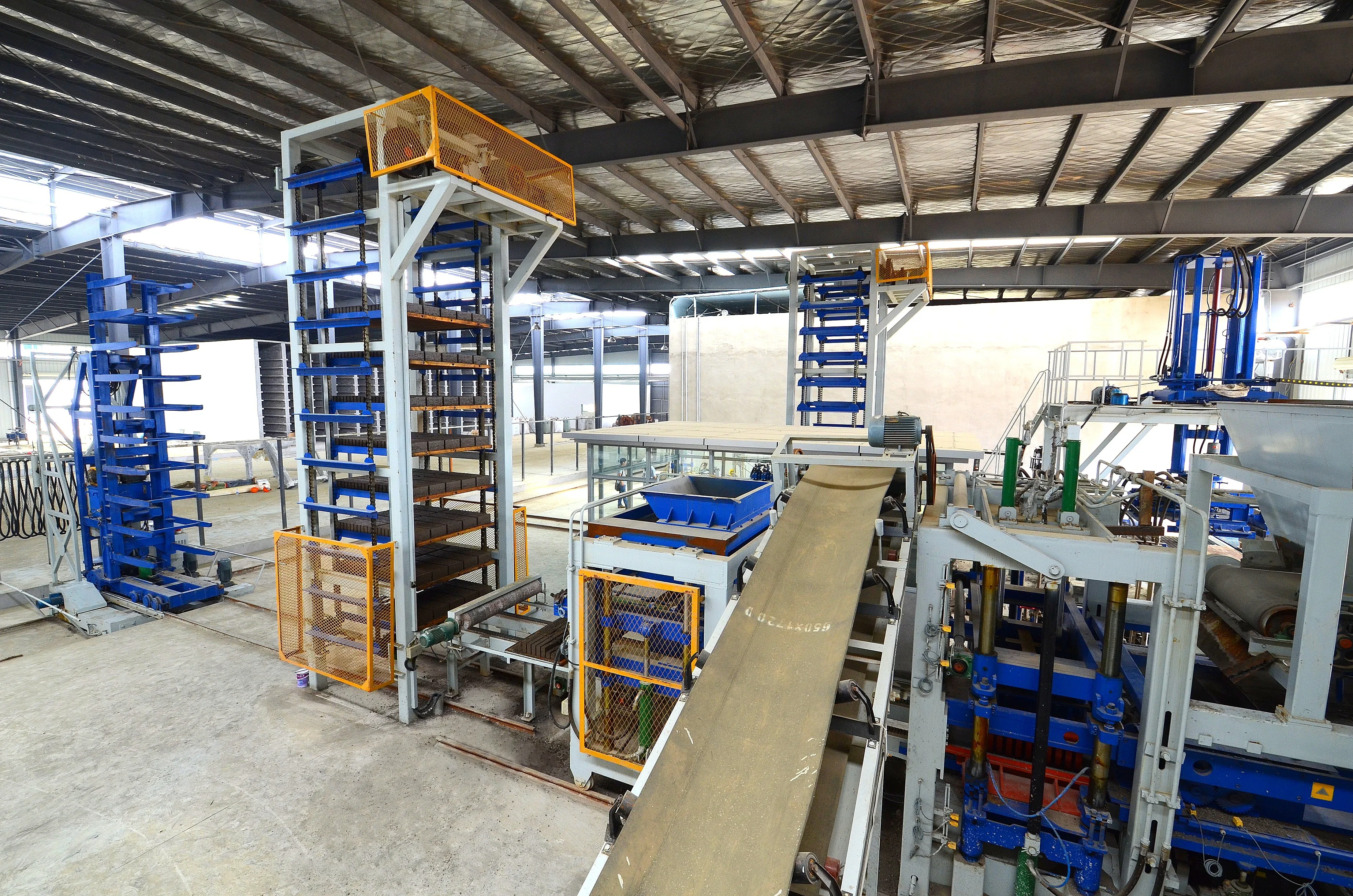

Running Projects
Contact Us



Tristan Wu
Wechat ：+86 189 9198 2995 Whatsapp: +86 151 9146 0534 www.brictec.com
View this supplier’s website View Company Video Download and View Report
